Eneltec is an Israeli company leader in the field of production, marketing and supply of technological solutions for lighting while maintaining the highest standards in the field of advanced lighting innovation and energy savings solutions.
DALI Black Beetle series for 70W – 1,000W
Eneltec designs, develop, produce and sell unique voltage regulators for individual street light luminaires.
The Energy Saving Controllers designed for installation as additional device for existing HID Street Light fixture that are based on magnetic ballast and PF capacitor. Monitored reduction of the input voltage enables significant power consumption savings in the existing street light systems.
The saving voltage is based on full sine wave synchronized with the line voltage.
The saving voltage does not affect the existing PF and harmonics.
These controllers allow the implementation of savings per individual lamp respectively by reducing the lighting intensity according to the standard requirements.
Easy & fast installation in the base of the lighting pole.
Short, effective and economic ROI.
The Energy Saving Controllers designed for installation as additional device for HID Street Light fixture based on magnetic ballast and PF capacitor, 70W-1,000W.
The controllers operate the HID Street Light fixture at different saving voltage levels resulting with reduction of the power consumption.
The controllers are of multi power reduction type and are designed to reduce the output voltage down to 190VAC.
The available output voltages: 190 – 230VAC.
The output voltages stabilize at range of ±2%.
The output voltage can be set to any requested voltage by remote control system using DALI communication or by preset and standalone working mode.
The communication protocol is according to DALI standard IEC62386.
The saving voltage is based on full sine wave synchronized with the line voltage.
The saving voltage does not affect the existing PF and harmonics.
The transits between the saving voltage levels are synchronized with continual lamp current.
These controllers enable the implementation of savings per lamp respectively by reducing the lighting intensity according to the road lighting standard.

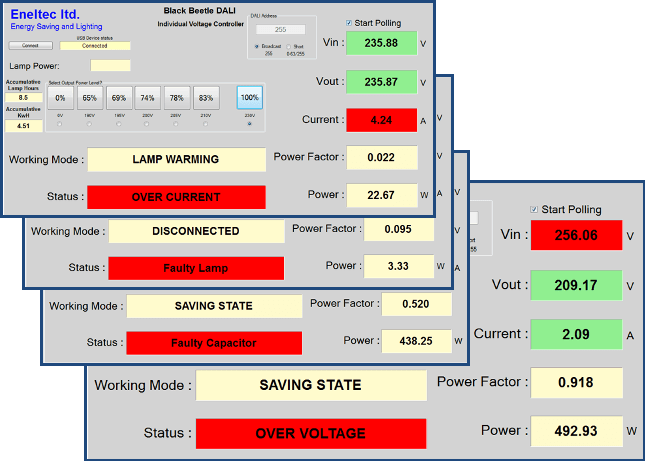

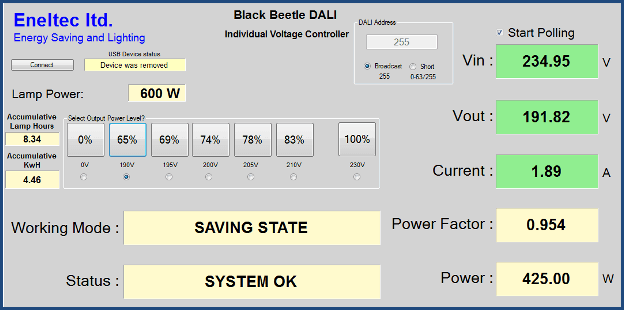

DALI control:
The device controlled by DALI communication and indicates all the requested telemetric data, alarms and protections.
Telemetric data:
Input voltage, Output voltage, Current, Power, Power factor, Lamp working hours, Accumulative KWH.
Alarms:
Over voltage, Over current, Short circuit, Over temperature, Faulty lamp, Faulty capacitor, Faulty ballast, Line frequency error.
Protections:
Over voltage shutdown, Under voltage bypass/shutdown, Over current bypass/shutdown, Short circuit shutdown, Line frequency error shutdown, Over temperature bypass/shutdown.
For Individual lighting control system, consulting/planning, Please leave details and our representative will get back to you soon.
